Jumbo Sack Container Bag Making Machine Fabric Cutting Machine

Brand Name : VYT

Model Number : 1350 2200 2400

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 300sets per year

Delivery Time : 35 WORKDAYS

Packaging Details : Bare or wooden box packaging

Name : Container Bag Making Machine

Machine type : Fabric cut line

Material : FIBC bag

Voltage : 380V

Cutting : Cold,hot and ultrasonic

Automatic : Full automatic

Condition : New

OME : Yes

Port : Shanghai

Moq : 1set

Contact Now

Jumbo Sack Container Bag Making Machine Fabric Cutting Machine

Description

Applied to the different jumbo bag fabric cutting like, Jumbo bag lay-flat/double flat~bric, Jumbo bagsingle-layer fabric, Jumbo Bag bottom cover, top cover, top mouth fabric.

Features

1.The specially designed machine integrates the various main functions in jumbo bag cutting—punching like:Auto jumbo—fabric roll
feeding,Edge process control(EPC),Length—counting,Punching unit for “O” hole,Punching unit for “+” hole,Circle describing,
Linear—knife cutting,Jumbo—fabric feeding.
2 PLC control system.Color man—machine interface,which make date—setting,display,recording more clear and accurate,easier
operation.
3.Hydraulic automatic jumbo—fabric roll feeding&EPC unit,stable,simple and easy in operation.
4.Equipped import servo control system for precise and fast cutting.
5 Applied to the different jumbo bag fabric cutting like:Jumbo bag lay flat/double flat fabric,Jumbo bag single—layer fabric,Jumbo
bag bottom cover,top cover,top mouth fabric. Jumbo Sack Container Bag Making Machine Fabric Cutting Machine

Jumbo Sack Container Bag Making Machine Fabric Cutting Machine

Model	2200
Cutting Width	Max.2200mm
Cutting Length	500—10000mm
“X”Hole	200-500mm
“O”Hole	300-600mm
Cutting precision	±5mm
Production Speed	10-20Pcs/min(Fabric cutting) 10-15Pcs/min(“X”Hole or “O”Hole)
Total installed capacity	8KW
Weight of machine	2800Kgs
Overall dimension	780027601600mm(LengthWidthHigh

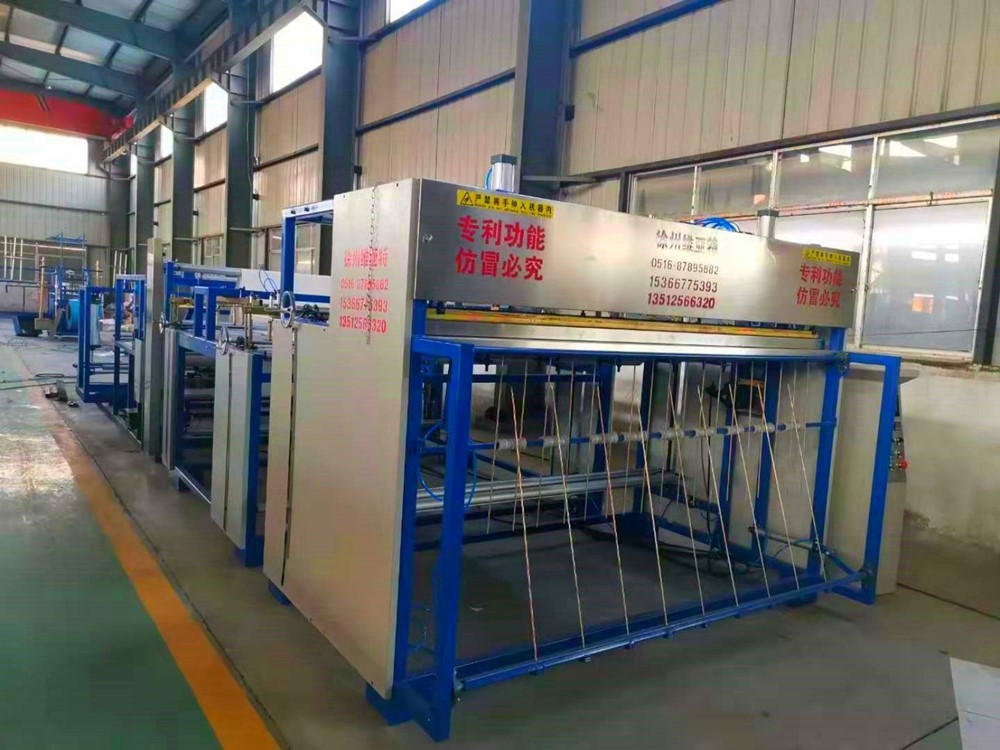

Jumbo Sack Container Bag Making Machine Fabric Cutting Machine Images
